Next DC M1 Data Centre, Port Melbourne

Next DC M1 Data Centre is a 15MW facility spread over 6,000 sqm delivering N+1 redundancy with high efficiency water-cooled chillers, air cooled cooling towers and circulating pumps.

The system is installed with dual primary and secondary pipework headers and distribution system for redundancy and leak detection system for critical plant areas.

Water cooled CRAC units all located in secure plant corridor outside data hall suites. Hot aisle containment systems for data halls 1,2 and 3; Cold aisle containment systems in halls 4,5 and 6

Equipment include:

  • 2.8MW water cooled Chillers
  • 160kW water cooled CRAC Units
  • Humidity control Air Handling Units
  • Cooling Towers

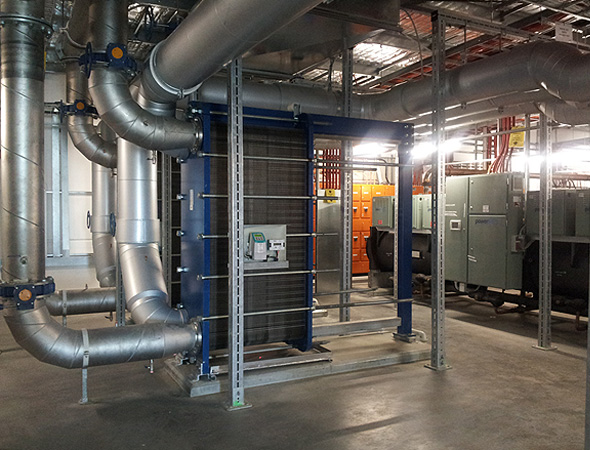

  • Free Cooling Plant via plate heat exchangers
  • State of the Art Data facility
  • 6000m2 of technical space when completed
  • 3 x PowerPax 2.8 MW water cooled Chillers
  • 48 x 160kW Stulz CRAC Units
  • 3 x Munters humidity control Air Handling Units
  • 4 x Baltimore AC Cooling Towers
  • Free Cooling Plant via plate heat exchangers
  • Office served by Mitsubishi VRF system
  • Smoke spill, ventilation, and exhaust systems
  • Full BMS control system.
